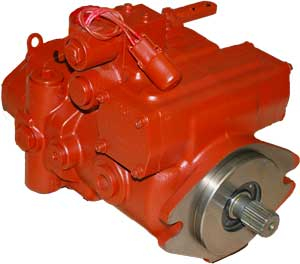

PISTON PUMP 15SPL CW 0-40CC

AADRAAA13EE1TT0MC0A000A000D
Righthand (CW) Rotation
Input Shaft: 15 tooth
Output Shaft: 9 tooth
Auxiliary Rear Mounting: SAE "A" Series 82-2
Charge Pump: 6,9 cm3/r [.42 in3/r] disp. with Inlet Port 1 - 5/16-12 UN-2B, SAE O-ring Port
Charge Pump Relief Setting: 17 to 21 bar [250 to 300 PSI], relieved to case.
Auxiliary Port: 3/4-16 UNF-2B, SAE O-ring Port, plugged on both sides.
Drain Port: 1 - 1/16-12 UN-2B, SAE O-ring Port, on right side and rear flange drained into housing
Main Ports:1 - 5/16-12 UN-2B, SAE O-ring Port, same side on right
Relief Valves: 345 bar [5000 PSI]
Control Assembly: Manual with wide band neutral
Supply Orifice: ,71 mm [.028 in]
