Flow Divider

Flow Divider

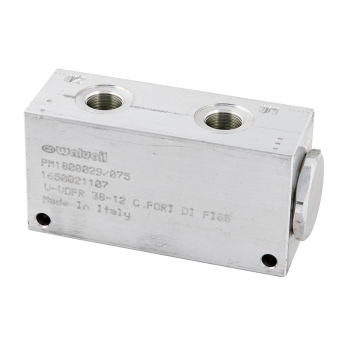

The VDFR is designed to divide incoming flow at port E into two equal deliveries U1 and U2. Pressure variations in U1 and U2 do not alter the output flow. The valve works in the opposite direction to combine the flows together.

Code Description ports flow max pressure Price
1650021107 VDFR38-12 50/50 FLOW DIVIDER C/W FIXING HOLES 3/8" bsp 4-12 lpm 210 bar £157.90 (exc VAT) Each
1650021114 VDFR38-24 50/50 FLOW DIVIDER C/W FIXING HOLES 3/8" bsp 12-24 lpm 210 bar £150.22 (exc VAT) Each
1650031100 VDFR12-40 50/50 FLOW DIVIDER PRESSURE COMPENSATED NO FIXING HOLES 1/2" bsp 24-40 lpm 210 bar £163.63 (exc VAT) Each
1650031104 VDFR12-40 50/50 FLOW DIVIDER C/W FIXING HOLES 1/2" bsp 24-40 lpm 210 bar £167.40 (exc VAT) Each
1650031101 VDFR 12-40 60/40 FLOW DIVIDER NO FIXING HOLES 1/2" bsp 24-40 lpm 210 bar £220.17 (exc VAT) Each
1650041100 VDFR34-90 50/50 FLOW DIVIDER C/W FIXING HOLES 3/4" bsp 34-90 lpm 210 bar £260.00 (exc VAT) Each
1650062100 VDFR-114-250/AC FLOW DIVIDER STEEL 1 1/4" bsp 200-250 lpm 350 bar £692.44 (exc VAT) Each
