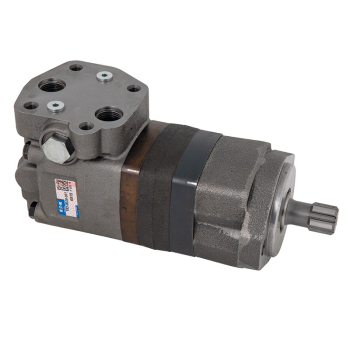

Eaton CharLynn 2000 Series Two Speed Motors

Eaton Char-Lynn Two Speed 2000 Series Motors
Displacements from 80 to 490 cc/rev (40-245 in high speed mode)
Continuous torque upto 845Nm.

This motor gives the user the ability to switch the displacement of the motor thus providing a different speed at a different torque without changing the input flow or pressure. An external three way valve is required for shifting the pilot pressure port between signal pressure (HSLT) and low pressure (LSHT). Two speed motors are available with a return line closed center shuttle for closed circuit applications.

Applications include Conveyors, Winches, Traction drives, Augers, Irrigation and utility cable reels , Drilling and boring machines, Piling rigs

click here to download technical information

click here to download parts information

Code Description cc/rev mounting shaft ports Price
193-0086-001 2K-130-TBAA 2 SPEED MOTOR 130CC/REV 130/65 4Bolt 32mm keyed 1/2"bsp £1170.18 (exc VAT) Each
193-0087-001 2K-155-TBAA 2 SPEED MOTOR 155CC/REV 160/80 4Bolt 32mm keyed 1/2"bsp £1268.78 (exc VAT) Each
193-0088-001 2K-195-TBAA 2 SPEED MOTOR 195CC/REV 195/95 4Bolt 32mm keyed 1/2"bsp £1279.48 (exc VAT) Each
193-0089-001 2K 245 TBAA 2 SPEED MOTOR 245CC/REV 245/120 4Bolt 32mm keyed 1/2"bsp £1290.17 (exc VAT) Each
193-0090-001 2K-305-TBAA 2 SPEED MOTOR 305CC/REV 305/152 4Bolt 32mm keyed 1/2"bsp £1259.28 (exc VAT) Each
193-0092-001 2K-490-TBAA 2 SPEED MOTOR 490CC/REV 490/245 4Bolt 32mm keyed 1/2"bsp £1540.84 (exc VAT) Each
193-0011-001 2K-100-TABB 2 SPEED MOTOR 100CC/REV 100/50 2Bolt 1-1/4" keyed 7/8"sae £1259.87 (exc VAT) Each
193-0012-001 2K-130-TABB 2 SPEED MOTOR 130CC/REV 130/65 2Bolt 1-1/4" keyed 7/8"sae £1259.87 (exc VAT) Each
193-0026-001 2K-080-TAFB 2 SPEED MOTOR 080CC/REV 80/40 2Bolt 6 Spline 7/8"sae £1191.56 (exc VAT) Each
193-0027-001 2K-100-TAFB 2 SPEED MOTOR 100CC/REV 100/50 2Bolt 6 Spline 7/8"sae £1196.32 (exc VAT) Each
193-0028-001 2K-130-TAFB 2 SPEED MOTOR 130CC/REV 130/65 2Bolt 6 Spline 7/8"sae £1201.07 (exc VAT) Each
